Fibre Glass (FRP) Honeycomb Panels

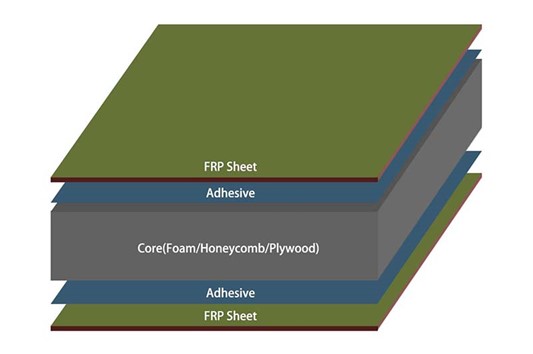

Fiberglass Reinforced Plastic (FRP) honeycomb panel is a lightweight sandwich panel, which made of honeycomb core and fiberglass skins.
Honeycomb core material can be Honeycomb (Aluminium, PP), Foam (PU, PET, PVC, XPS, EPS, EPP, etc) or Plywood while the finished of fiberglass skins can be gel coat, rough, anti-slip, or others. It replaces traditional metal composite panels in many fields.
FRP-Alu honeycomb sandwich panels offer high mechanical performance, good impact strength, flame retardant and low maintenance cost. They have excellent application performance in logistics transportation, shelter, building decoration, air diversion and other fields.
In some applications, FRP honeycomb sandwich panel is also mainly used as substrate panels to composite other materials, like stone veneer, and porcelain.
Characteristics
- Light weight with high Strength
- Heat insulation
- Sound and Vibration dampening
- Water, moisture, corrosion, and chemical resistant
- Easy to Assemble
- Waterproof: This is the unique difference between FRP panels and wood panels. This material has good sealing performance, no water seepage, and no water leakage, even if the surface is damaged. It will not absorb water
- Weather Resistant: Glass fibre reinforced thermoplastic materials have wide temperature range, between -40 and +80 degree Celsius.
SPECIFICATION
Aluminium Alloy | 3003/5052 |
Aluminium skin thickness | 0.8mm-1.5mm |
Aluminium Honeycomb core | Cell size: 3mm-34mm, Foil thickness: 0.036mm-0.08mm |
Skin Sheets | FRP (Fibreglass) |
Skin Thickness | 0.5 mm – 1 mm |
Total Thickness | 10 mm, 15 mm, 20 mm, 25 mm/ Customized |
Size | 1220*2440 mm/ Customized |
Notes: The design and size of panel can be customized according to customer specifications | |
APPLICATIONS
- Automotive- Dry cargo truck body, Logistics express vans

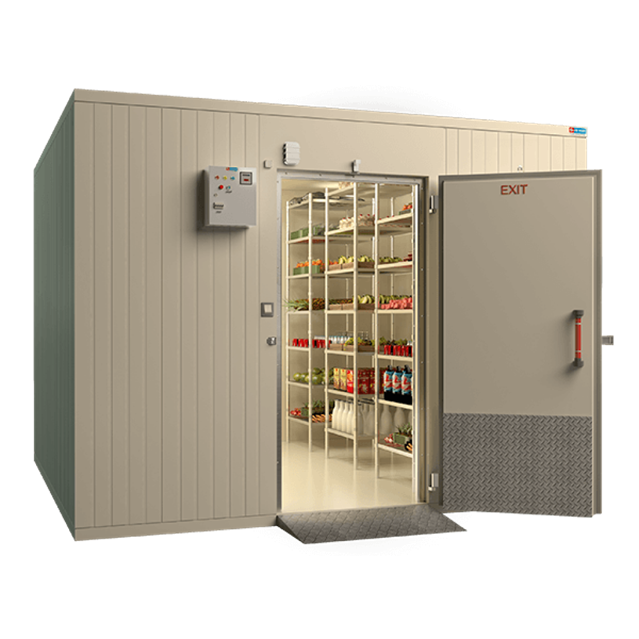

- Building and Construction- cooling tower, storage warehouse, hospitals, restaurants, cold storage panels.
- Stone Compound Panels- They can be used as supporting substrate materials for making stone honeycomb panels or acrylic honeycomb panels, to achieve a light weighted but strong & flat composite panel
- Marine Partition- Floor, Partition
